CCD-S3600-D（-UV）的概述：
該CCD-S3600-D（-UV）是一個完整的，并準備使用高速數字CCD線掃描相機。該設備包括許多先進和獨特的功能。在同一時間，容易使用，緊湊，重量輕，并且不需要外部電源。
高靈敏度線陣CCD傳感器陣列包含3648個有效像素，并涵蓋廣泛的光譜范圍。該傳感器由復雜的基于FPGA的硬件控制。像16位ADC，32 MB DDR2內存和USB 2.0等高端組件確保高精度，大容量數據存儲和高速。亮點包括，無失幀，在參數的精確控制（如集成）高幀速率，觸發進出，多種操作模式和獨特的數據流模式。
該CCD-S3600-D（-UV）是適合誰需要簡單地獲取光強度數據以及先進的用戶，誰想要“擠”出來的每一個設備的先進功能，專家新手。
CCD照相機支持所有主要的操作系統，可以從許多編程語言接口，允許無限制的后處理的可能性。不斷更新的USB驅動程序，接口庫和++是免費的包括用于LabVIEW和C注釋良好的應用程序。
該CCD線陣相機代表了科學，研究，教育和眾多的OEM應用提供理想的高性價比解決方案。
特征：
高靈敏度的線陣CCD傳感器陣列具有3648有效像素（8×200微; m每個），高光學分辨率和寬動態范圍
寬光譜范圍：320 - 1100納米，200 - 1100 UV選項
精確的16位高速ADC（每像素65536級亮度）
即插即用，完全由軟件控制
積分時間可以從10微設置; S - 1分鐘在精確的1微; S步驟
高幀率高達269.5 FPS
板載數據存儲模式和獨特的直接數據流模式：捕捉后續幀的數量不受限制在高幀速率無失幀（限制就是你的存儲設備）
大32 MB高速DDR2內存為4599幀和數據緩沖板載數據存儲
高速USB 2.0（480 Mbit / s的）
FPGA硬件控制器和高速電子
從與外部設備的觸發輸入和輸出同步
多種操作模式及多種觸發模式
硬件暗校正
USB供電，無需外接電源，緊湊的設計
支持多種編程語言和開發平臺無限制后處理的可能性
多操作系統支持：Windows，Linux和Mac OS X的，等等（32＆64位）
自由與現成使用FTDI的USB驅動程序和庫，LabVIEW驅動（8.6及更高版本），GUI應用程序和C ++的例子，所有可用于Windows，Linux和Mac OS X的
未來操作系統的支持將增加。只要FTDI發布新的驅動程序也可以從FTDI立即下載免費的，可用于該設備。不同于其他公司，ALPHALAS不定制FTDI的VID和PID，因此該設備可以直接，盡快為他們發布使用原不斷更新的驅動程序。這也是理想的OEM應用。
Overview of the CCD-S3600-D(-UV):
The CCD-S3600-D(-UV) is a complete and ready to use high-speed digital CCD line scan camera. The device includes many advanced and unique features. At the same time it is easy to use, very compact, lightweight and does not require an external power supply.
The high-sensitivity linear CCD sensor array contains 3648 active pixels and covers a wide spectral range. The sensor is controlled by complex FPGA-based state-of-the-art hardware. Other high-end components like 16-bit ADC, 32 MB DDR2 RAM & USB 2.0 assure high precision, large data storage & high speed. Highlights include high frame rates with no missing frames, precise control over parameters (e.g. integration), trigger in & out, multiple operating modes and a unique data streaming mode.
The CCD-S3600-D(-UV) is suitable for novice users who need to simply acquire light intensity data as well as advanced users and experts who want to "squeeze out" each of the advanced capabilities of the device.
The CCD camera supports all major OS and can be interfaced from many programming languages, allowing unlimited post-processing possibilities. Constantly updated USB drivers, interfacing libraries and well-commented applications for LabVIEW and C++ are included free of charge.
The CCD line camera represents an ideal cost-effective solution for numerous applications in science, research, education and OEM.
Highlights of the advanced digital high-speed CCD line camera CCD-S3600-D(-UV):
Best-in-class device available on the market
High-sensitivity linear CCD sensor array with 3648 pixels
16-bit ADC
32 MB DDR2 onboard RAM
USB 2.0 Plug & Play
Trigger input & output
High frame rates with no missing frames
Unique data streaming mode
UV (ultra-violet) option
Easy to use with fully software-programmable parameters
State-of-the-art FPGA-driven hardware with many unique features that you will not find on any other device
Very compact & USB-powered (no external power supply required)
Supports Windows 10/8.x/7/Vista/XP (WHQL certified drivers),
Linux , Mac OS X & Other OSIncludes drivers & applications for LabVIEW & C++
Features:
High-sensitivity linear CCD sensor array with 3648 active pixels (8 x 200 µm each), high optical resolution & wide dynamic range
Wide spectral range: 320 - 1100 nm, 200 - 1100 with UV Option
Precise 16-bit high-speed ADC (65536 intensity levels per pixel)
Plug & play, full software control
Integration time can be set from 10 µs - 1 min in precise 1 µs steps
High frame rates up to 269.5 fps
Onboard data storage mode & unique direct data streaming mode: Capture an unlimited number of subsequent frames with no missing frames at the highest frame rate (the only constraint is your storage device)
Large 32 MB high-speed DDR2 RAM for onboard data storage of 4599 frames & data buffering
High-speed USB 2.0 (480 Mbit/s)
State-of-the-art FPGA HW controller & high-speed electronics
Trigger input & output for synchronization from & to external devices
Multiple operating modes & multiple trigger modes
Hardware dark correction
USB-powered, no external supply required, very compact design
Supported by many programming languages & development platforms for unlimited post-processing possibilities
Multi-OS support: Windows, Linux, Mac OS X, etc. (32 & 64 bit)

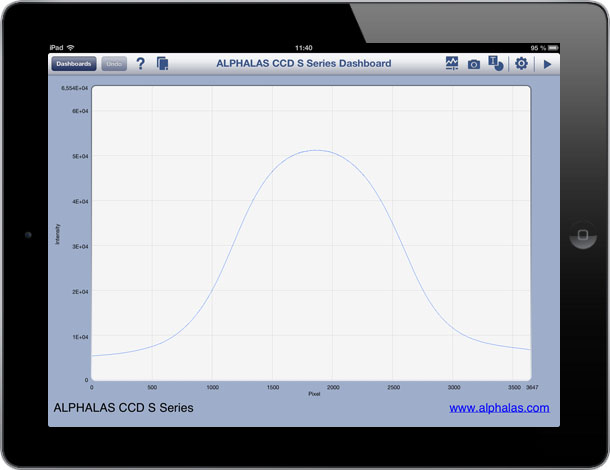

Free & ready-to-use FTDI USB drivers & libraries, LabVIEW drivers (for version 8.6 and later), GUI applications & C++ examples, all available for Windows, Linux and Mac OS X
Future OS support will be added. As soon as FTDI releases new drivers they can be immediately downloaded from FTDI free of charge and can be used for the device. Unlike other companies, ALPHALAS does not customize FTDI's VID and PID and therefore the device can directly use the original constantly updated drivers as soon as they are released. This is also ideal for OEM applications.
Applications:
Ideal for science, research, education as well as OEM applications
Ideal for mobile / notebook / laptop as well as desktop use
Physics, chemistry, biology, biomedicine, medicine (but not for use on human beings)
Lasers, optics, photonics, spectroscopy
Measurements: light, fluorescence, M², beam profile, single-shot autocorrelators
Imaging (1-D or 2-D by parallel moving), data acquisition, machine vision, monitoring, process control, industrial OEM applications
